5KIP IMV Model i240 SA3M Vibration System with Slip Table
USED IMV Corporation Model i240/SA3M Vibration System Shaker with SA3AM-i40 Amplifier and Slip Table.
***Fully Serviced by IMV North America***
Ready to Ship

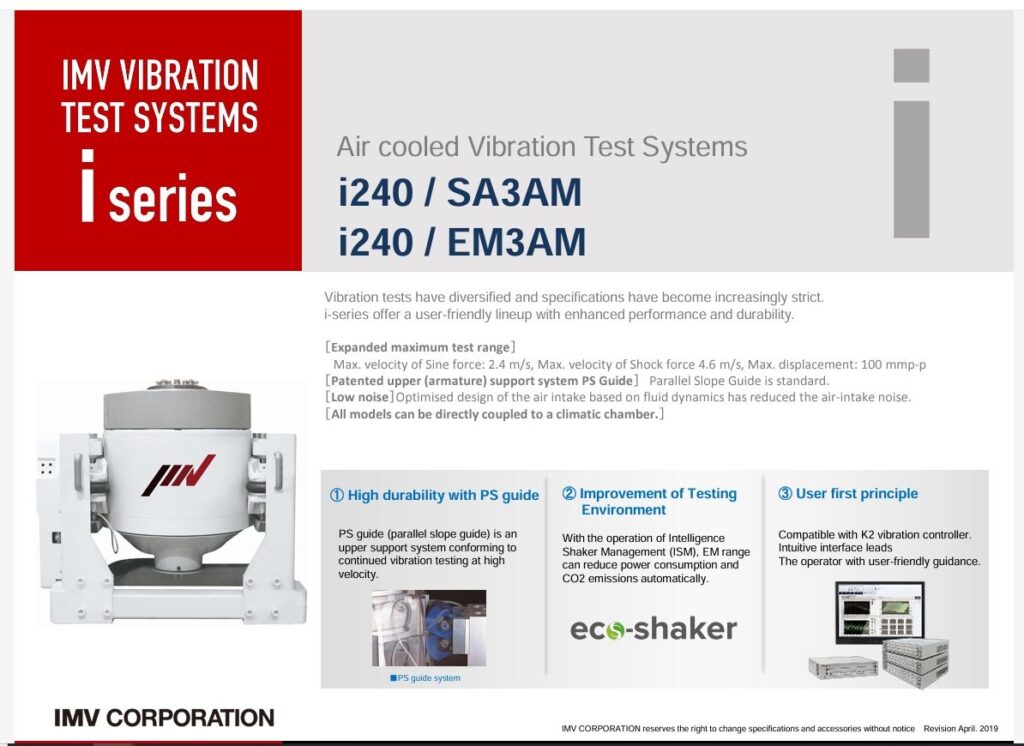

IMV Model i240
SPECIFICATIONS:
Force Rating:
Random: 5,000 lbs. (24 kN) RMS
Sine: 5,000 lbs. (24 kN)
Shock: 10,000 lbs (48 kN)
Stroke: 2" peak to peak (51 mm)
Frequency Range (Hz): DC to 2,600Hz Max
Max Acceleration: Sine - 122g Random - 85.7 g Shock - 244 g
Maximum Velocity: 86.6 in/sec (2.2 m/s)
Table Diameter: 11.42” (290 mm)
Armature Weight: 44 lbs. (20 kgs)
Maximum Payload: 881 lbs (400 kg)
Total Weight (lbs.): 6,500 lbs.
Voltage Requirements: 208V, 60Hz, 3PH, 100A

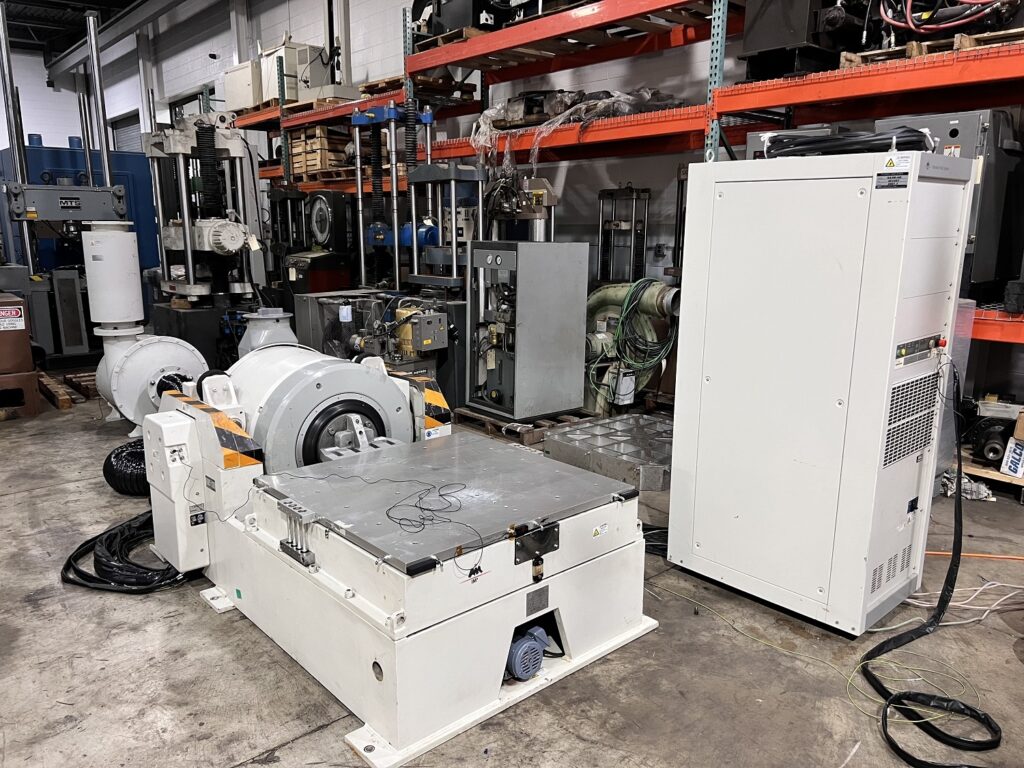

EQUIPPED WITH:
-

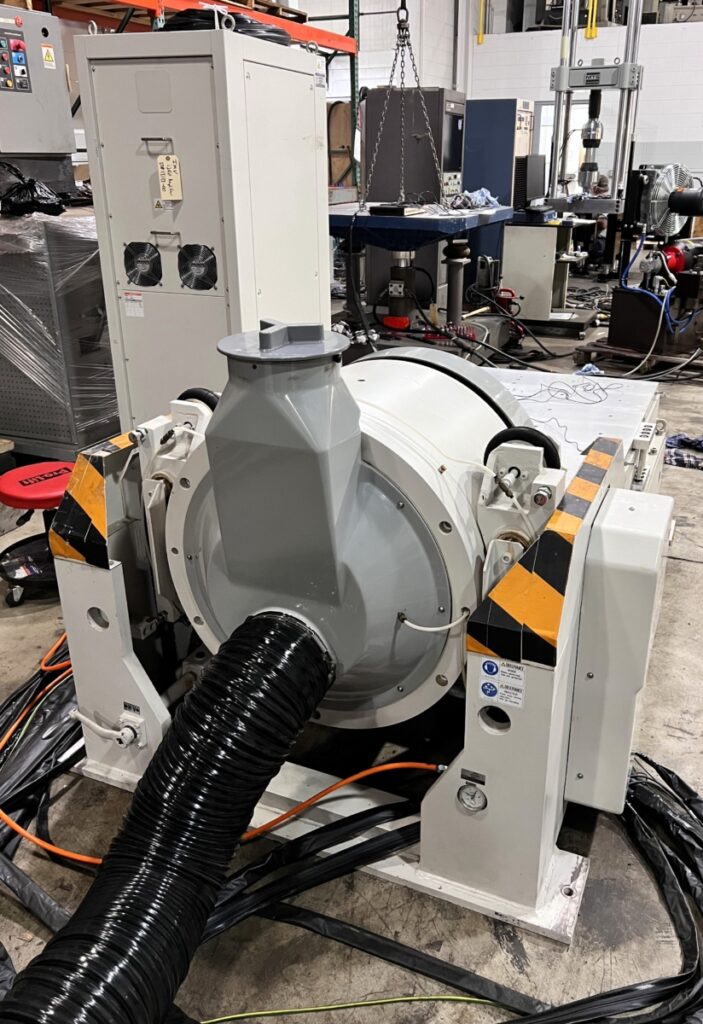

IMV Model i240 Shaker (S/N 461057)
-

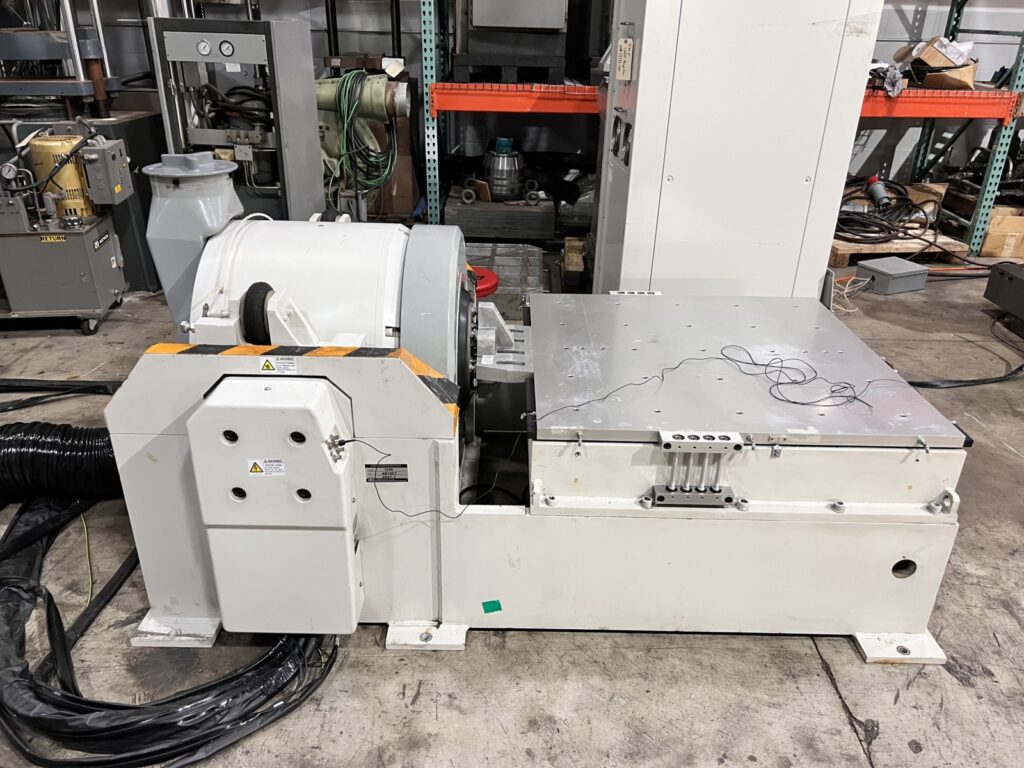

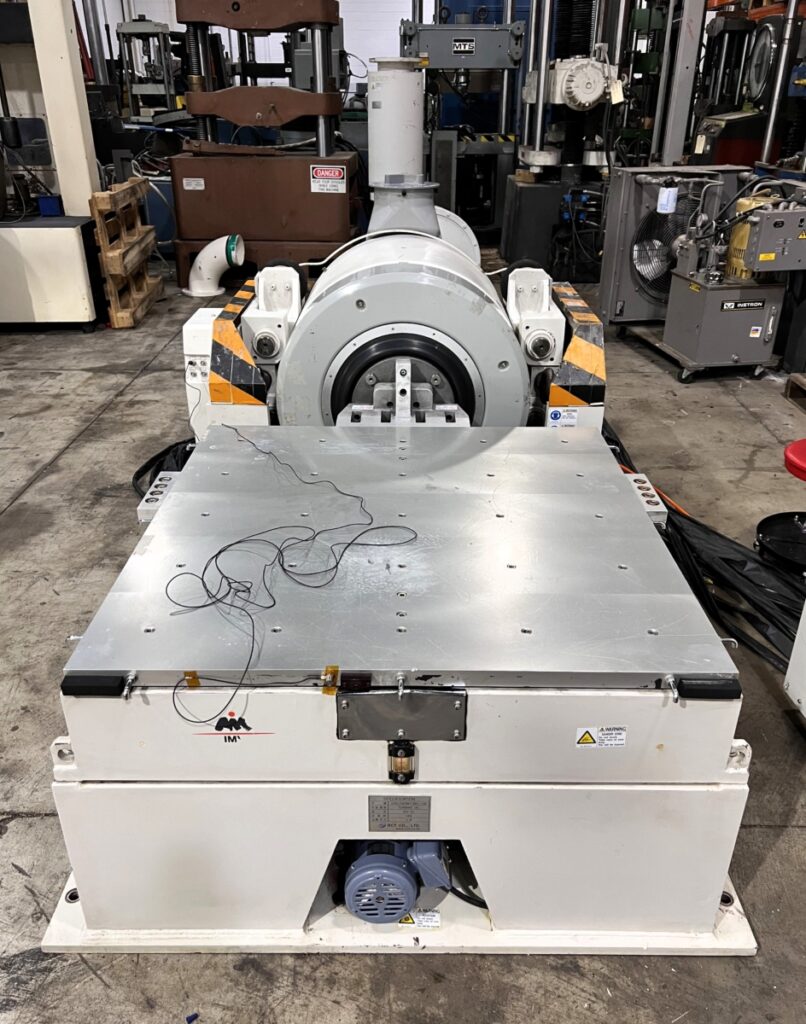

1000 mm x 1000 mm Slip Table System (Weight: 374 lbs)
-

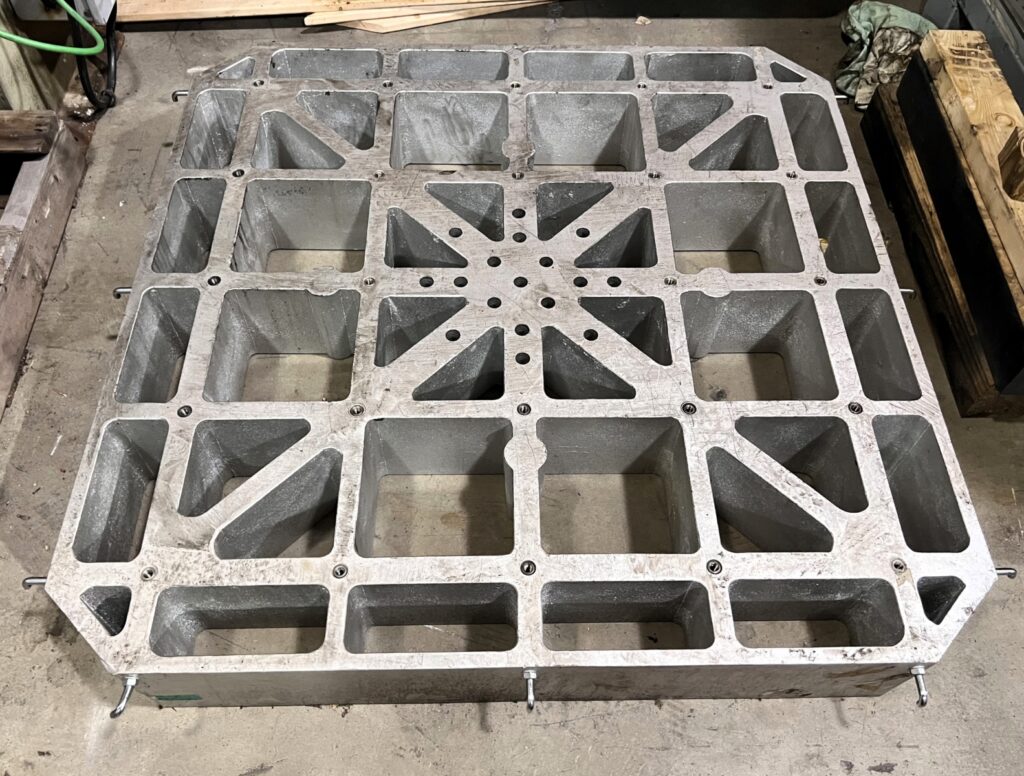

1000 mm x 1000 mm Head Expander (Weight: 225 lbs)
-

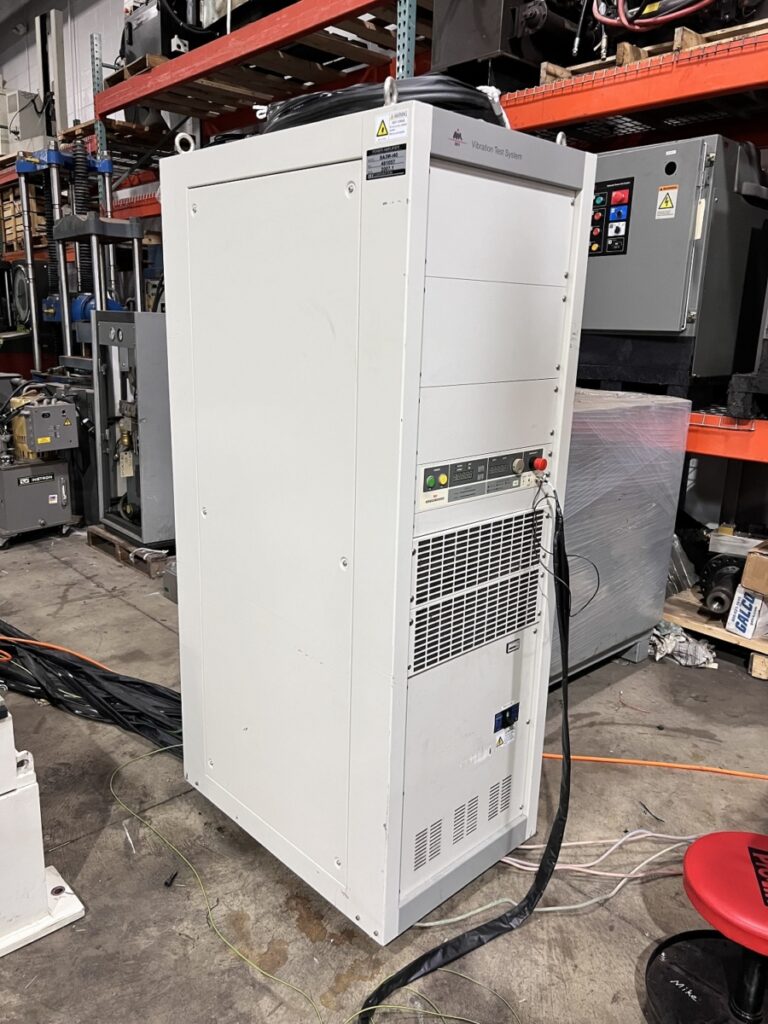

IMV Model SA3AM-i40 Power Amplifier (S/N: 461057)
-

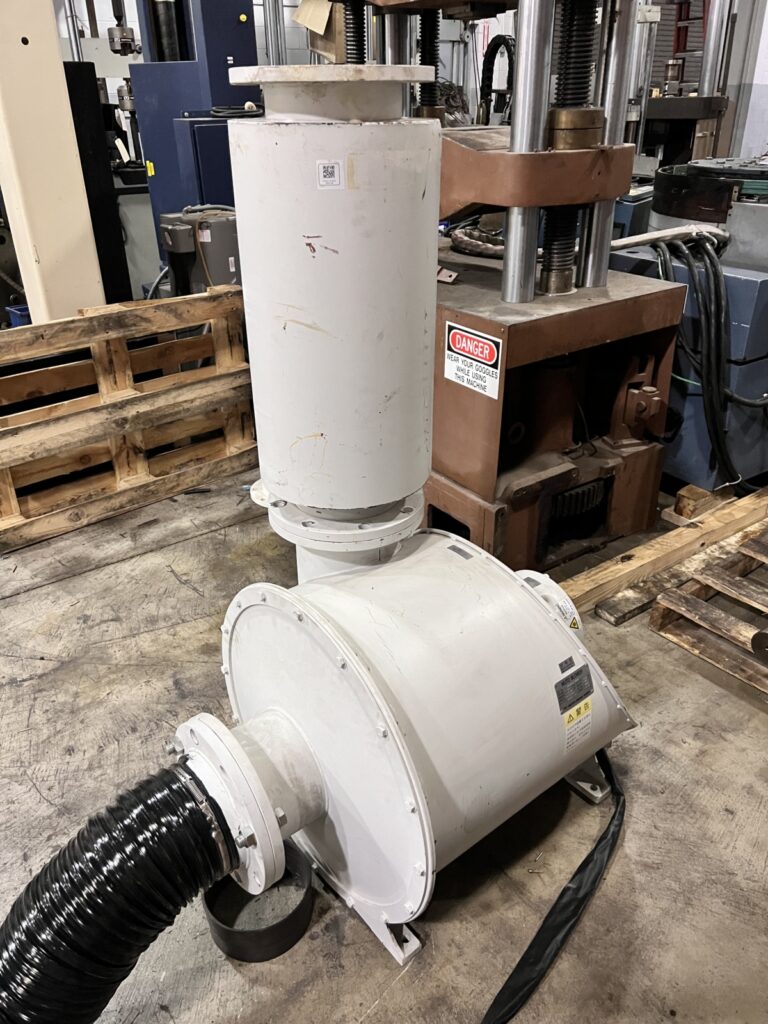

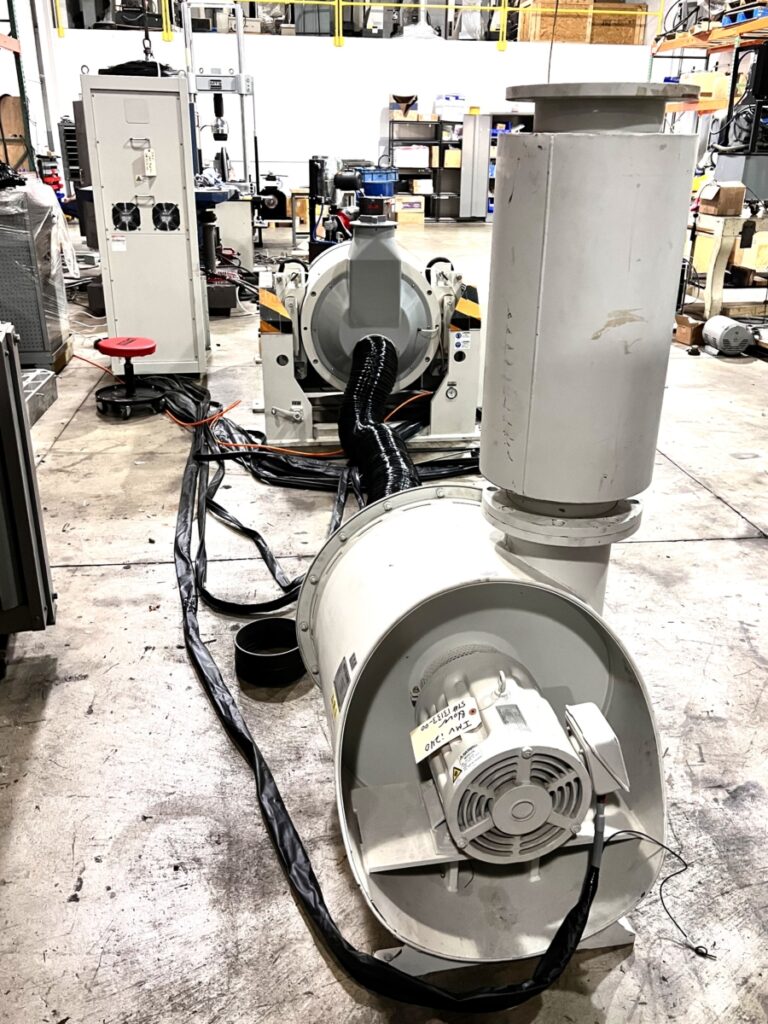

IMV 5.5 kW Cooling Blower with Silencer (Volume: 30 m^3/min / Pressure: -5.88 kPa)
-
System Cables
FOB Warren, MI
Cleaned, Serviced and Cycled
30 Day Satisfaction Guaranteed Return Privilege
90 Day Parts and Labor Warranty

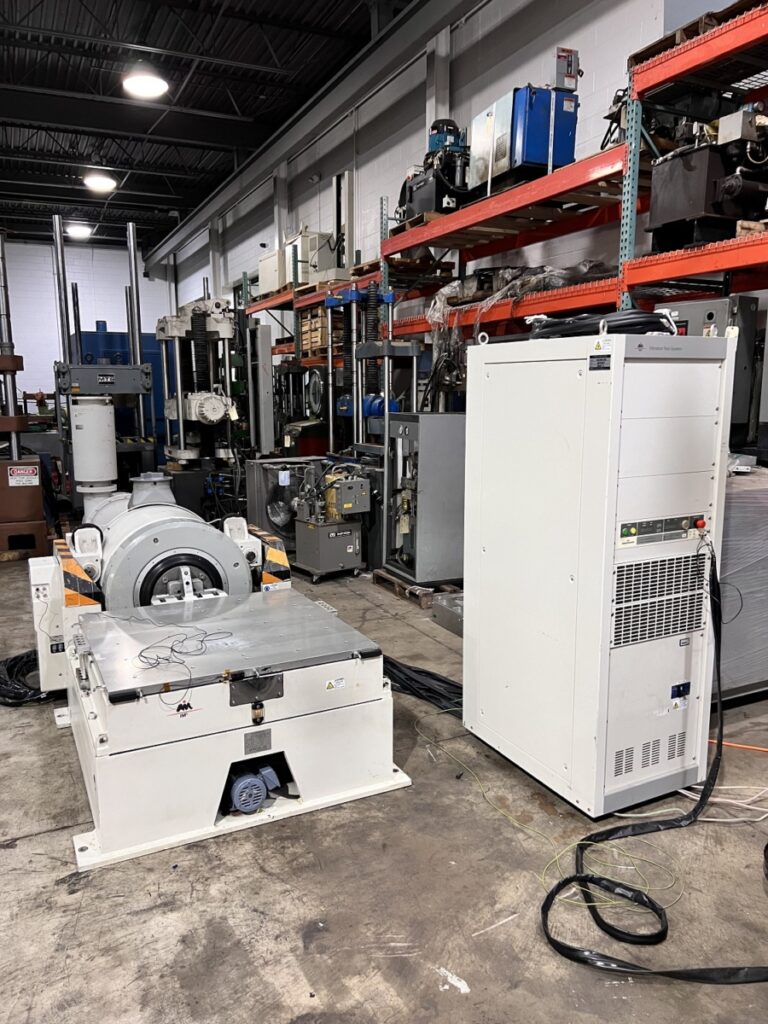

*Actual Pictures
Click for quote | #13133-00
